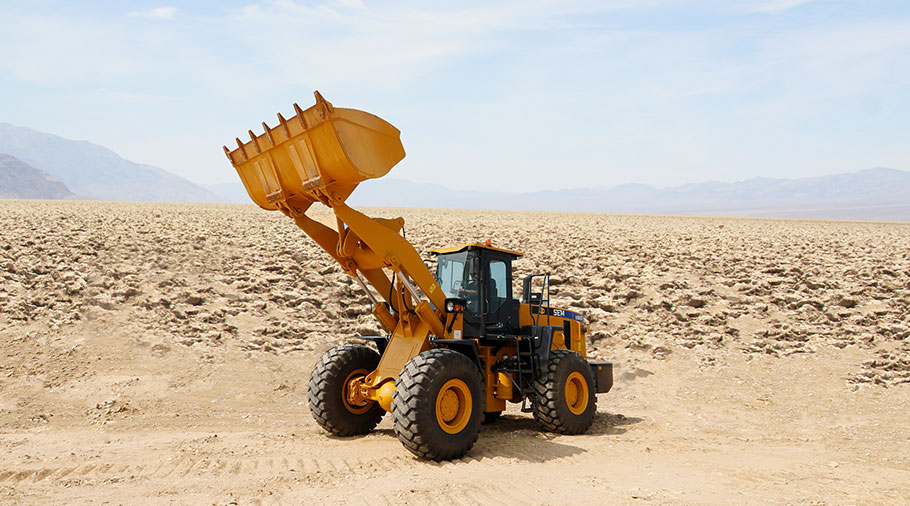

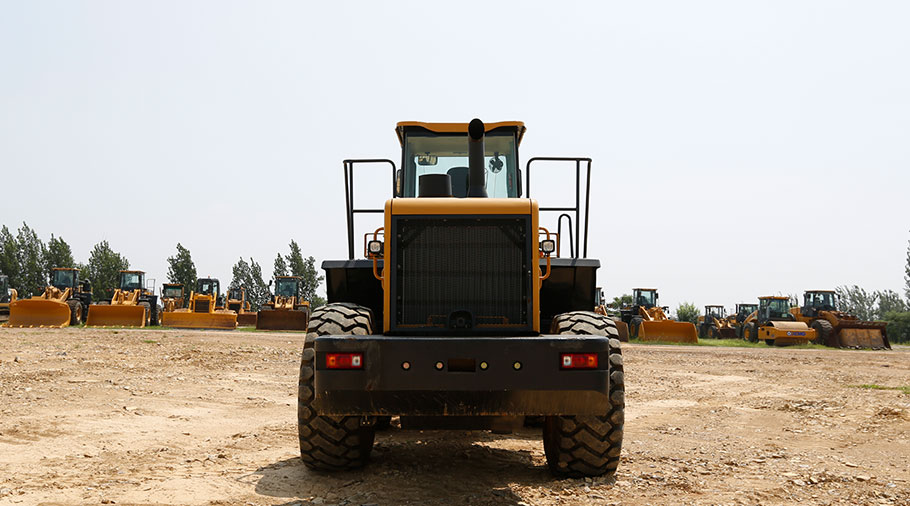

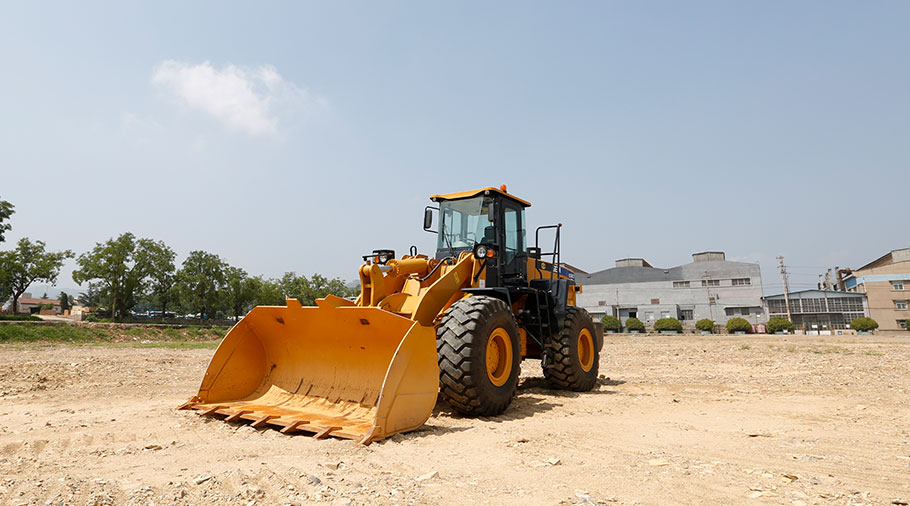

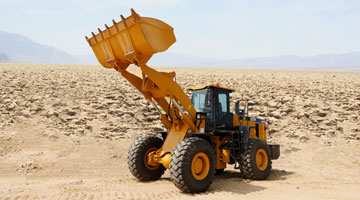

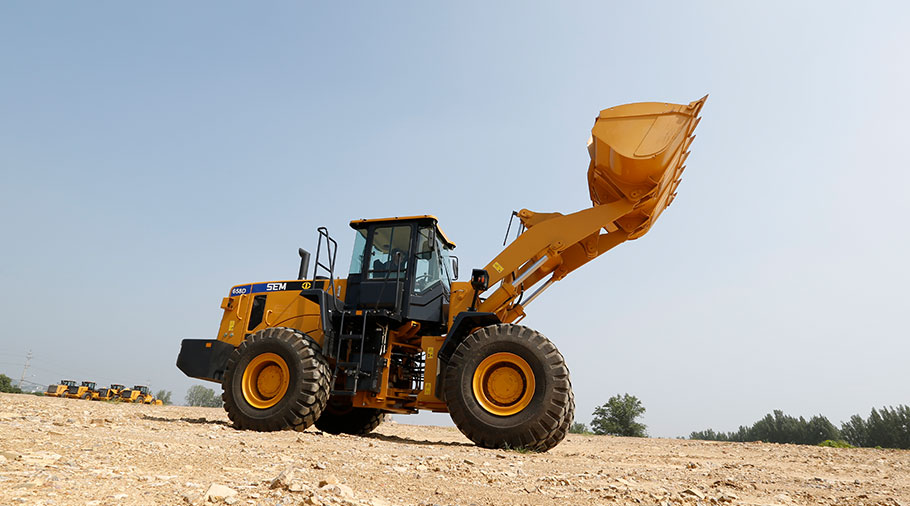

SEM658D-Weichai

SEM658D-Weichai

Advantages

Product Advantage

Reliability: Sturdy frame design for heavy duty, Caterpillar design EH transmission and made in house axle make usage life longer Productivity: EH control transmission with KD and auto speed function, optimized TC and engine match 8% rimpull improved

Fuel Consumption: Optimized transmission flow save fuel, E-fan and single load sensing hydraulic system make lower fuel consumption Comfortable: Good visibility, low noise design with first class premium 5 direction adjustable seat make operation comfortable

Inquiry
Features Specification Photo

Machine Applications

  • Landscaping, building, sewer/water tie-in, local utility construction Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel
  • Highway, street, tunnel, airport, residential commercial
  • Item
    Unit
    Params
  • Main Specifications
  • Rated Load
    kg
    5,000
  • Operating Weight with Standard Bucket
    kg
    17,084
  • Bucket Capacity
    m3
    2.6-4
  • Wheel Base
    mm
    3,300
  • Overall Dimension
    mm
    8,143*2,963*3,457
  • Max. Drawbar Force
    KN
    169
  • Breakout Force
    KN
    178
  • Dump Clearance
    mm
    3,113
  • B-Pin Height
    mm
    4,162
  • Transmission
  • Transmission Type

    Countershaft, Powershift, EH Control
  • Transmission Gears

    F4/R3
  • Torque Converter Type

    Single Stage, 3 Elements
  • Maker & Type

    SEM160
  • Forward I/Reverse I

    7.2/7.2
  • Forward II/Reverse II

    13/13
  • Forward III/Reverse III

    23/23
  • Forward IV/Reverse IV

    37/NA
  • Axle
  • Main Drive Type

    Spiral Bevel Gear, Single Stage
  • Final Drive Reduction Type

    Planetary Type,Single Stage
  • Rear - Oscillating +/-

    ±11
  • Engine
  • Model

    Cummins 6LTAA9.3
  • Rated Power
    kW
    162
  • Rated Speed
    r/min
    2,200
  • Displacement
    L
    9.3
  • Implement Hydraulic
  • Implement System Type

    Open Center
  • Boom Raise Time
    s
    5,37
  • Hydraulic Cycle Time
    s
    9.3
  • System Pressure Setting
    Mpa
    18
  • Brake System
  • Service Brake

    Dry&Caliper, Air to Oil Control
  • Parking Brake

    Drum/Shoe
  • Steering System
  • System Type

    Shared Flow
  • Steering Pump Type

    Piston Pump
  • System Pressure Setting
    Mpa
    16
  • Steering Angle (L/R)

    38±1
  • Tires
  • Size

    23.5-25
  • Type

    Bias
  • Layer

    16
  • Textured Type

    L-3
