SEM636D for India

SEM636D for India

Advantages

High Productivity

Best-in-class Reliability and Durability

Excellent Fuel Economy

Outstanding Operator Comfort

Inquiry
Features Specification Photo

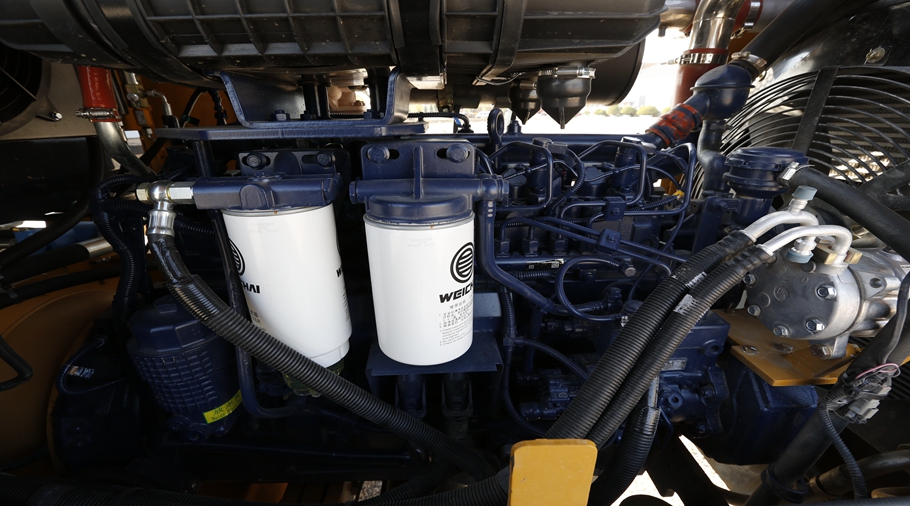

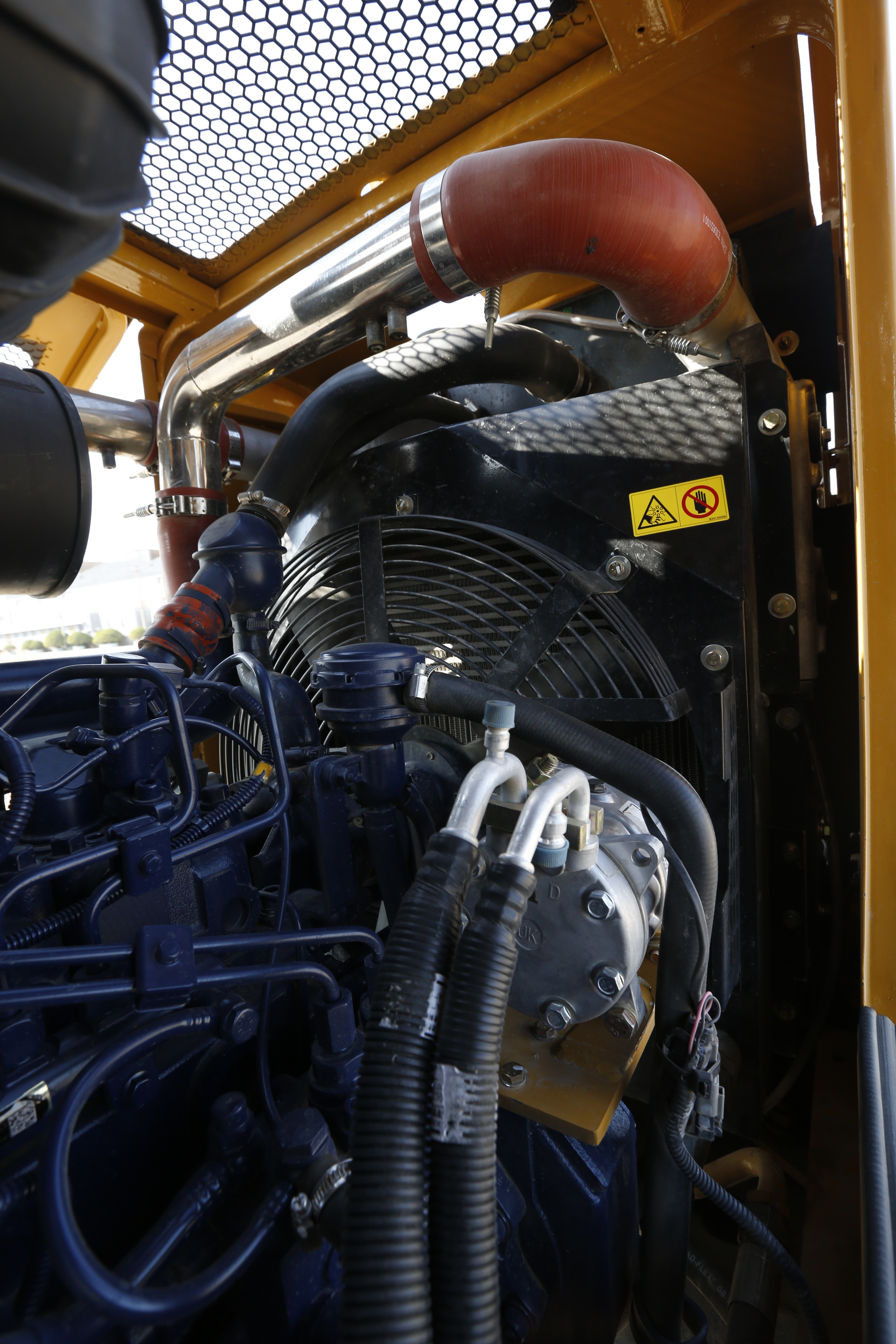

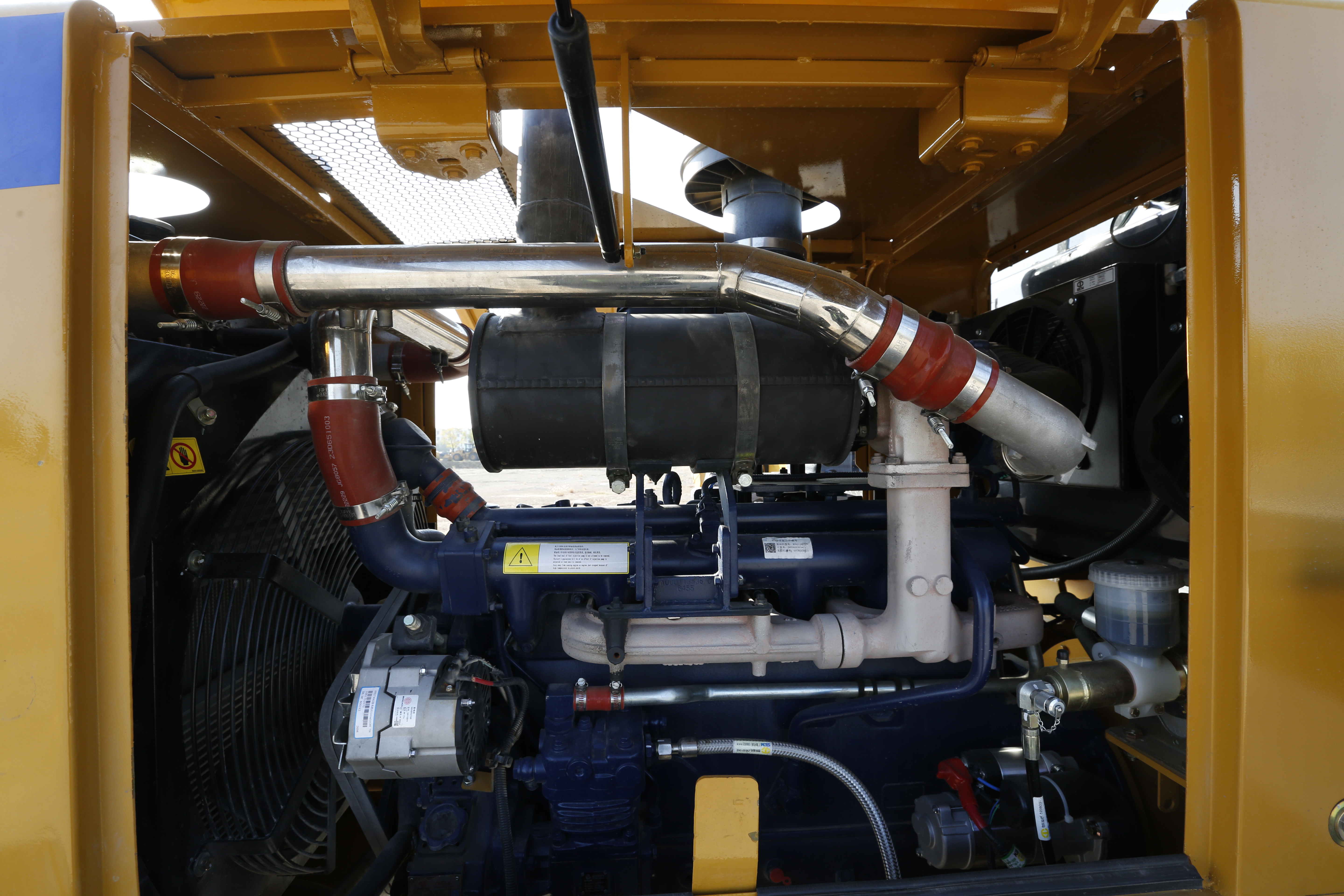

Weichai Engine

  • 93% desert air cleaner reduce earlier wearing 90%
  • CRS(Common Rail System) make engine lower noise and more efficiency
  • Double signal throttle pedal more reliable
  • Gantry-structure engine body, split cylinder head, easy maintenance

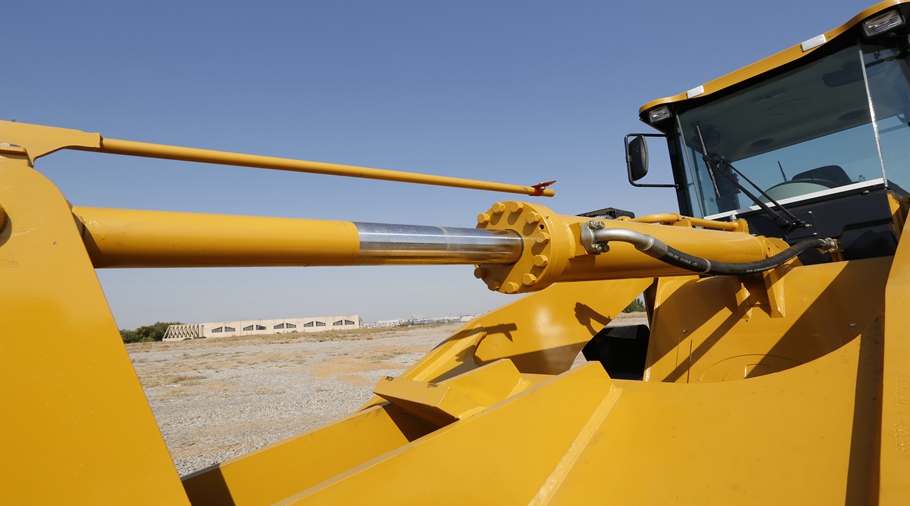

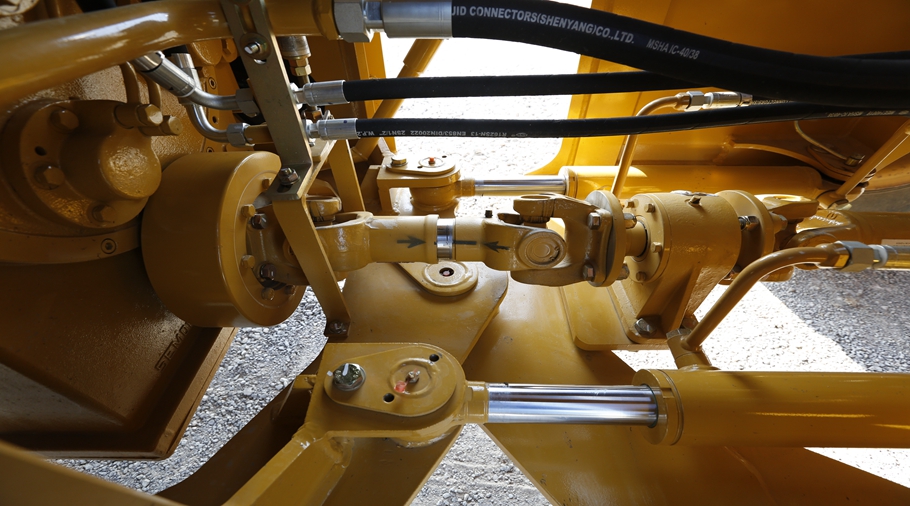

Efficient Hydraulic System

  • Single pump flow shared system makes fuel consumption better
  • Big drawbar pull and larger breakout force delivers high productivity
  • Perfect match between machine speed and hydraulic system to achieve high efficiency

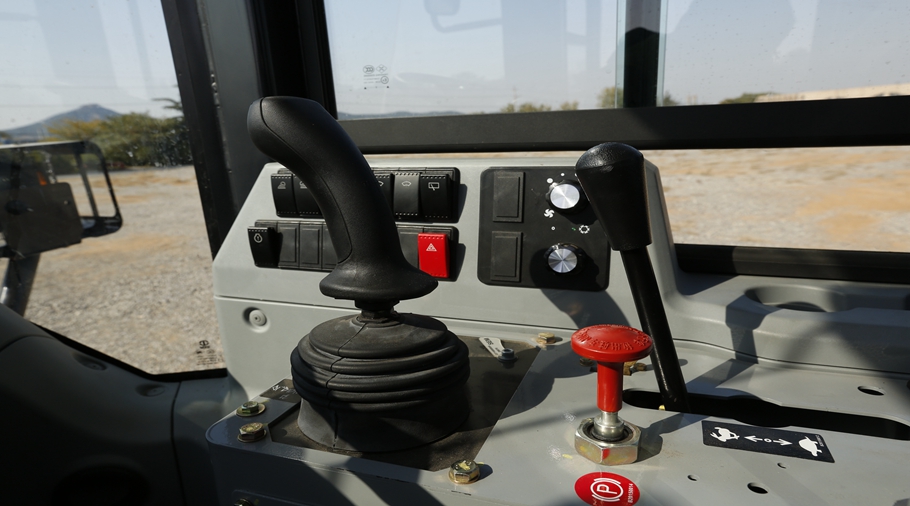

  • Joystick hydraulic control for easy and precise control

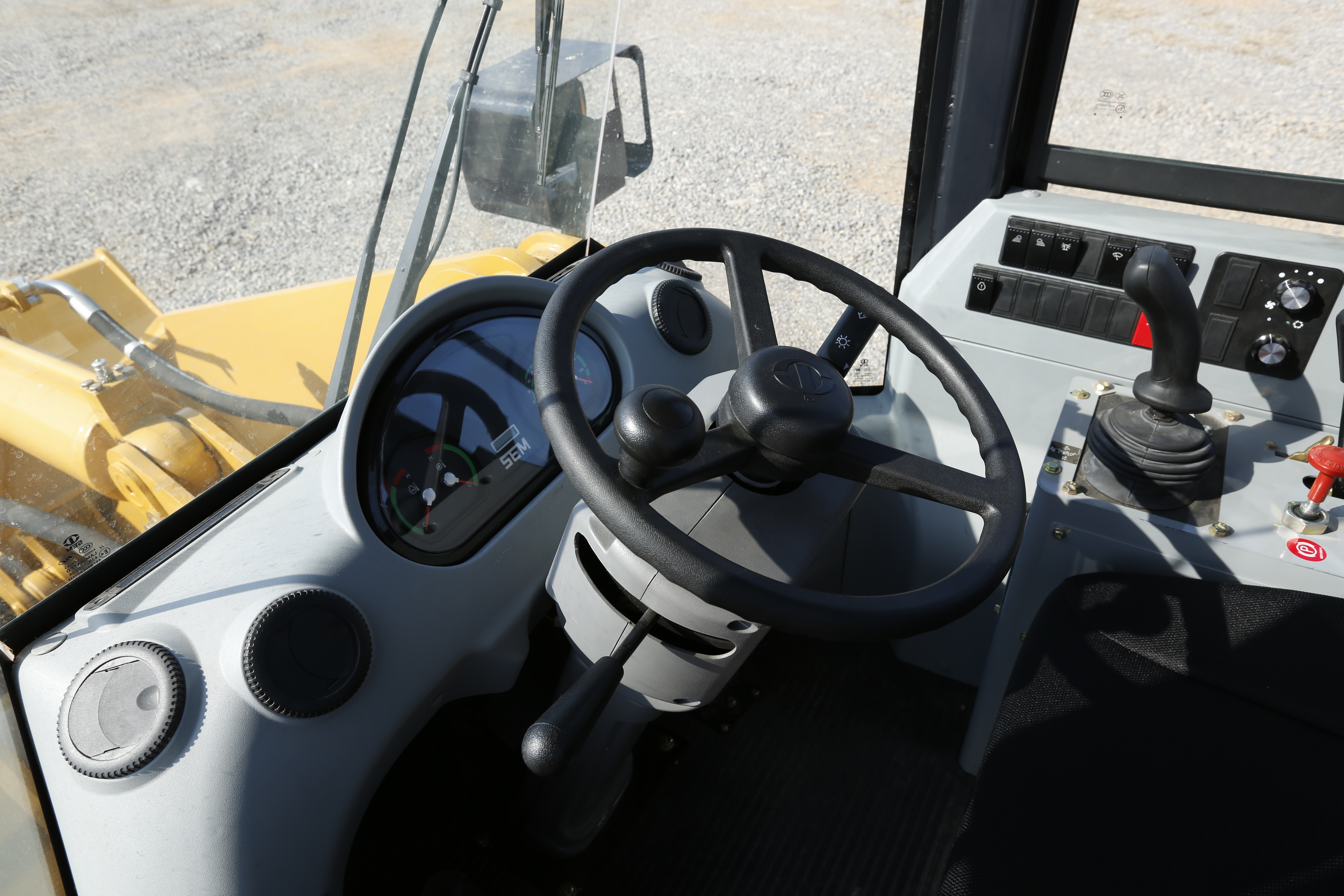

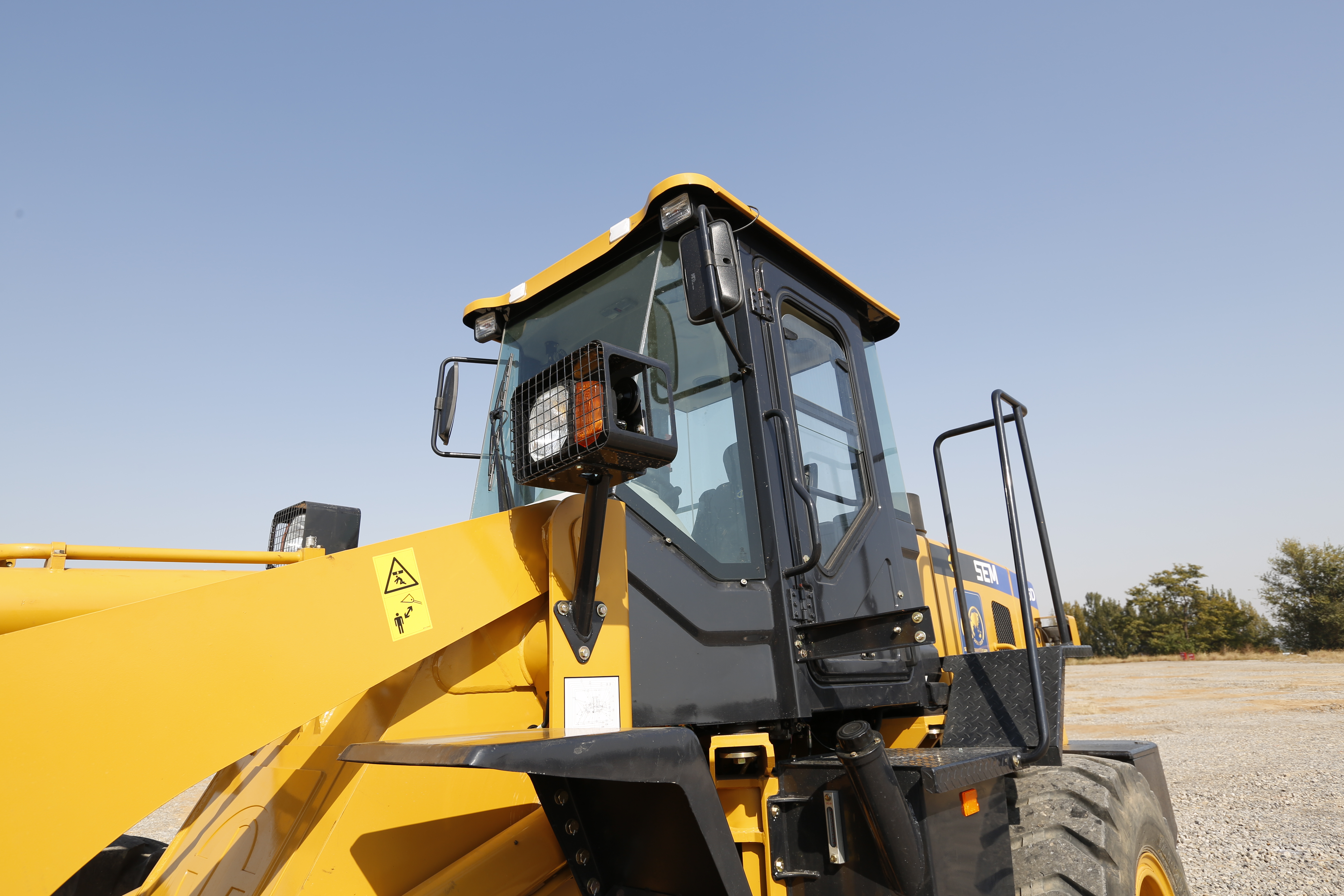

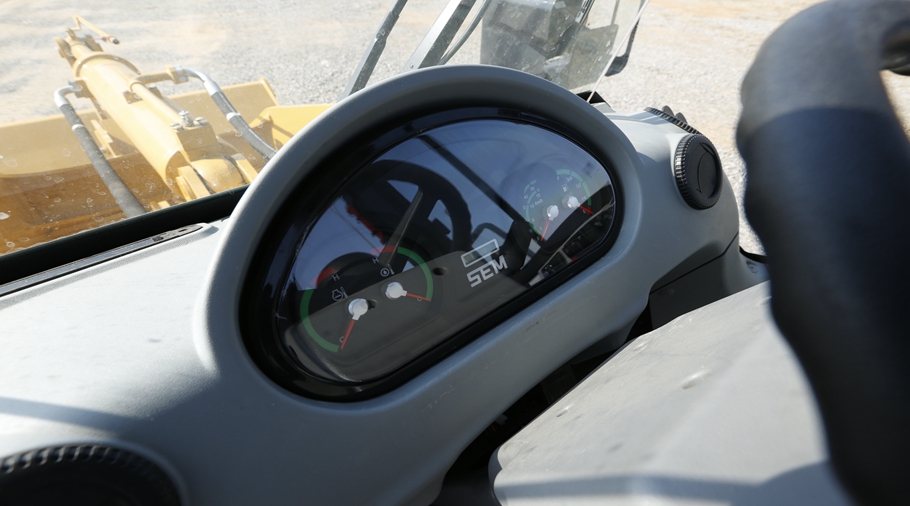

Operator Station

  • Premium operator station with big space and superior visibility
  • Patented MAC mount provides less noise and more comfort
  • Adjustable suspension seat
  • Sliding side window and AC with fresh air circulation provide operator comfort
  • Joystick control is flexible and convenient
  • Adjustable air flow outlet delivers better defrost performance

Reliable Drivetrain

  • Countershaft transmission with upgraded core components provides high reliability
  • Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
  • Power cutoff selection switch ensures stable and safe operation
  • One stage, 3 elements, torque convert deliver high efficency
  • Improved transmission shift smooth and comfortable

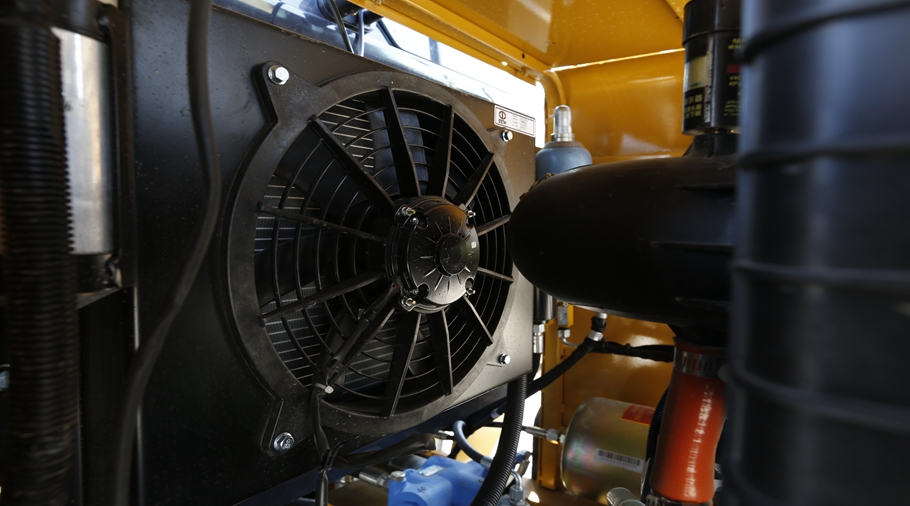

Advanced Cooling System

  • High efficiency cooling package
  • Anti vibration design ensure high reliability and durability even in severe application

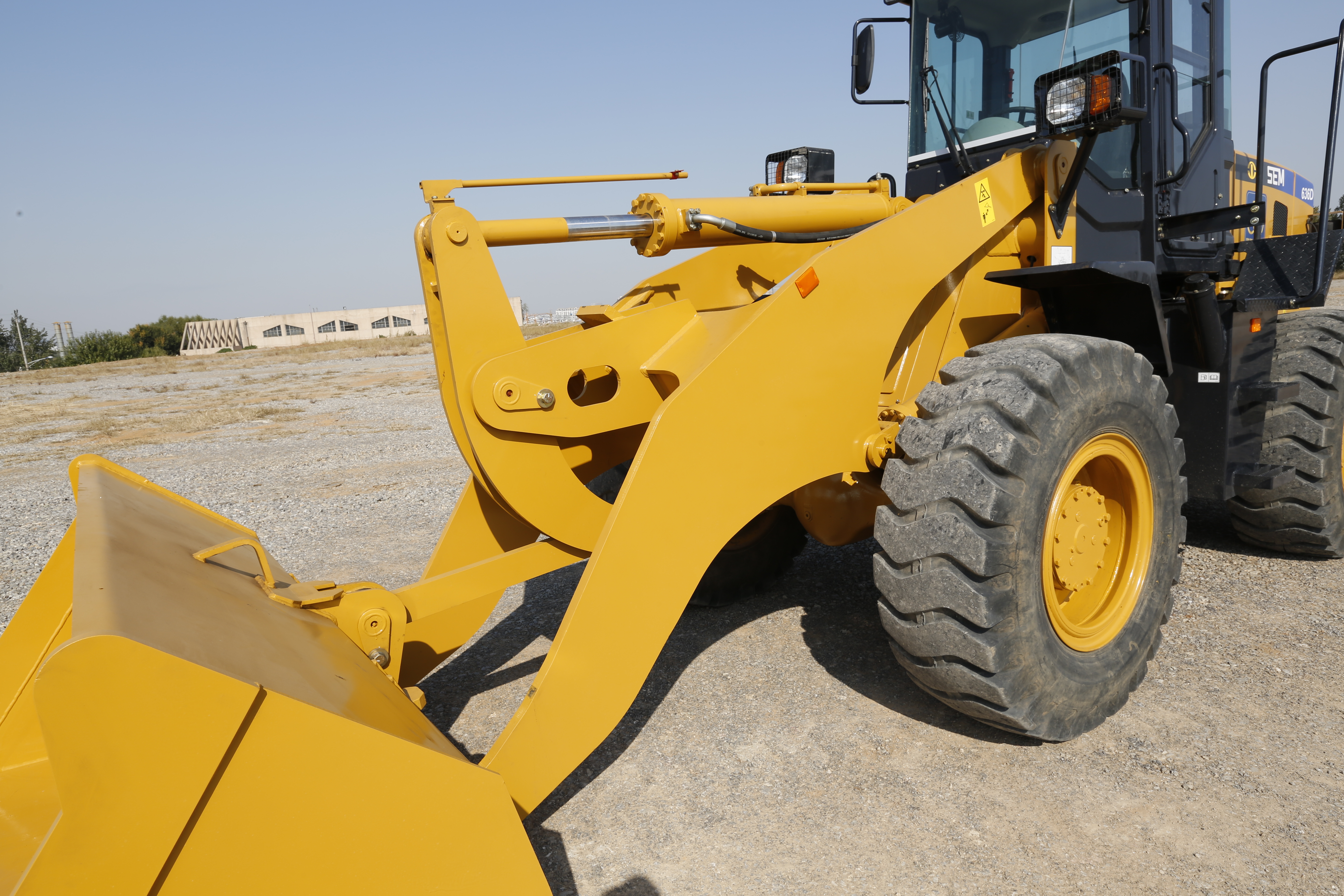

Solid Structure

  • Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
  • Performance Series (PS) buckets improve loading factor

Serviceability

  • System pressure test ports are standard easy for service and diagnoise

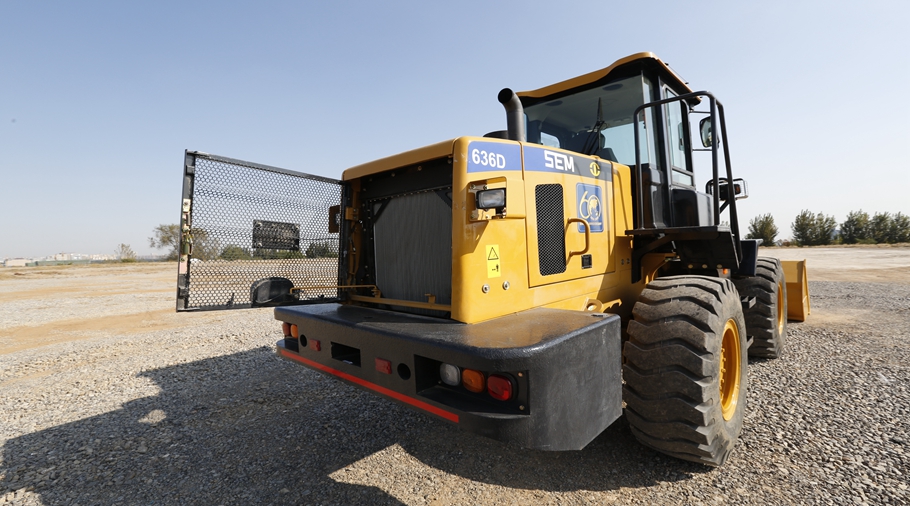

  • Big angle engine hood side open door provides easy service access
  • Torque convertor is isolated from transmission making it easy to service

Safety

  • Safety design complies with regulatory requirements
  • Caterpillar Production System (CPS) leveraged in manufacturing process
  • 3-point touching design provides convenient opera-tor entering to cabin
  • High decibel backup alarm make machine running more safely
  • Item
    Unit
    Params
  • Main Specifications
  • Rated Load
    kg
    3,000
  • Operating Weight with Standard Bucket
    kg
    10,200
  • Bucket Capacity
    m³
    1.5-2.5
  • Wheel Base
    mm
    2,740
  • Overall Dimension
    mm
    7,422*2,354*3,182
  • Max. Drawbar Force
    KN
    97
  • Breakout Force
    KN
    113
  • Dump Clearance
    mm
    2,989
  • B-Pin Height

    3,917
  • Transmission
  • Transmission Type

    Countershaft, power shift
  • Transmission Gears

    F4/R2
  • Torque Converter Type

    Single stage, 3 elements
  • Maker & Type

    TR100
  • Forward I/Reverse I

    7.9/7.9
  • Forward II/Reverse II

    14/14
  • Forward III/Reverse III

    25/NA
  • Forward IV/Reverse IV

    39/NA
  • Axle
  • Main Drive Type

    Spiral bevel gear, single stage
  • Final Drive Reduction Type

    Planetary type, single stag
  • Rear - Oscillating +/-

    ±12
  • Engine
  • Model

    WP6G125E332
  • Rated Power
    kW
    92
  • Rated Speed
    r/min
    2,200
  • Displacement
    L
    6.7
  • Implement Hydraulic
  • Implement System Type

    Open center
  • Boom Raise Time
    s
    4.65
  • Hydraulic Cycle Time
    s
    8.34
  • System Presure Setting
    Mpa
    18
  • Brake System
  • Service Brake

    Dry & caliper, air to oil control
  • Parking Brake

    Drum/Shoe
  • Steering Sys tem
  • System Type

    Shared flow
  • Steering Pump Type

    Gear pump
  • System Presure Setting

    14
  • Steering Angle (L/R)
    Mpa
    36±1
  • Tires
  • Size

    17.5-25
  • Type

    Bias
  • Layer

    12
  • Txtured Type

    L-3
