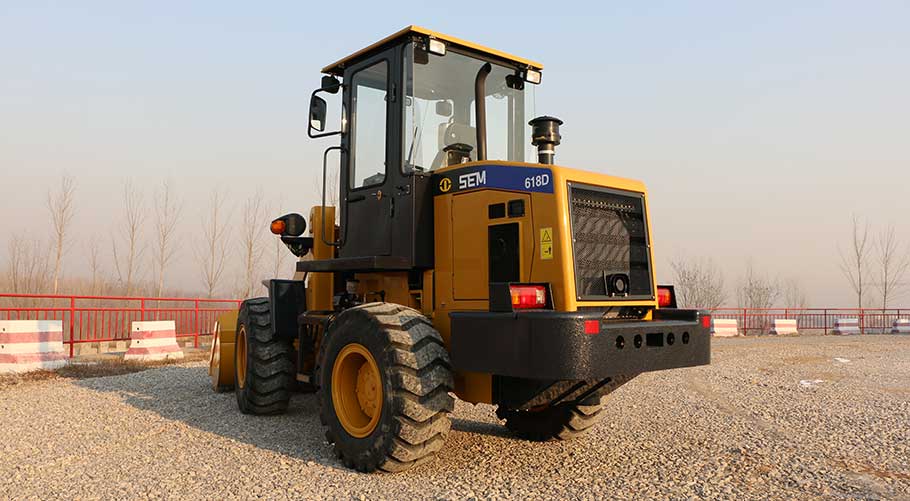

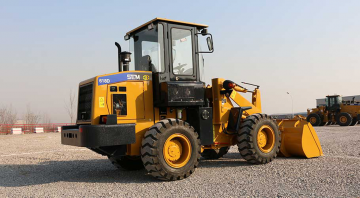

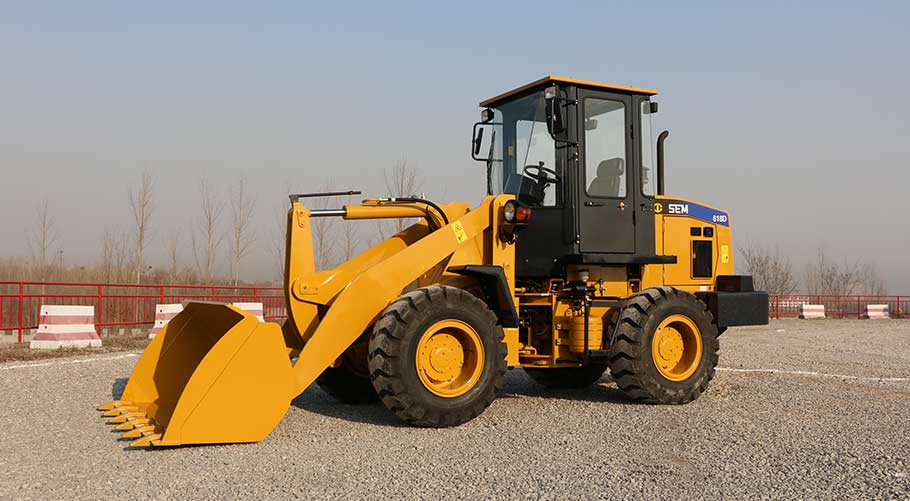

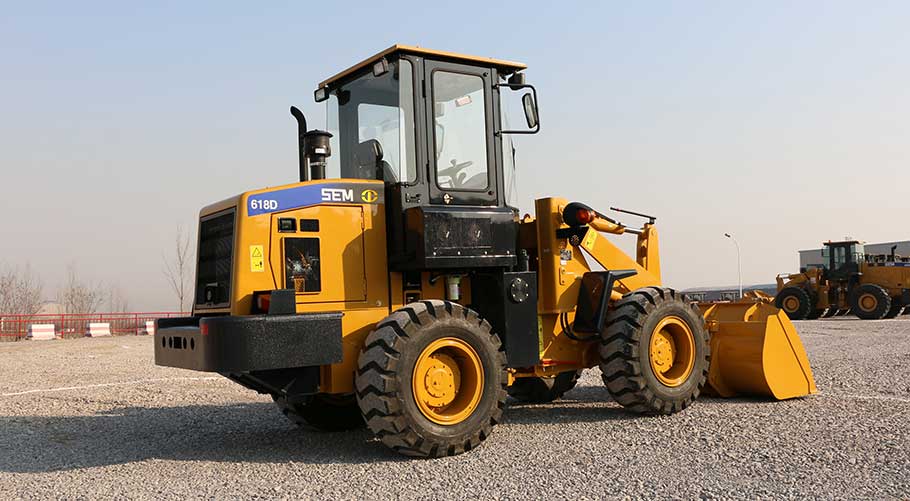

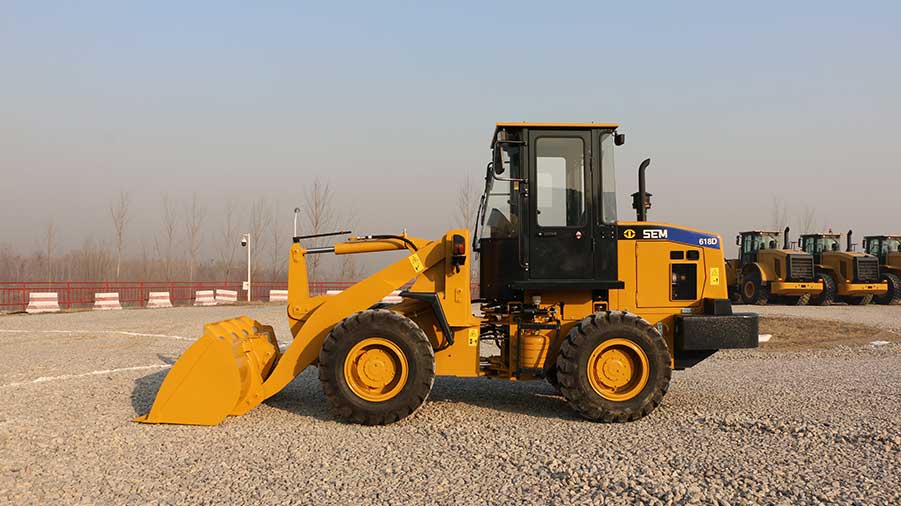

SEM618D Wheel Loader

SEM618D Wheel Loader

Advantages

Durability: Famous YTO engine, mature countershaft transmission & axle, proved made in house frame all of them providing the longer usage life

High Efficiency: Larger breakout fore and rimpul, fast HYD cycle time ensure high working

efficiency O&O Cost: Low speed engine, flow shared HYD system helps to save fuel and raise efficiency

Comfortable: Premium fiber seat with 4 direction and suspension adjustable, lower noise cab make operation environment more comfortable

Inquiry Download
Features Specification Photo

Engine

  • High efficiency thermal energy control technology, provide higher reliability and efficiency
  • Powerful engine with 30% torque reserve, make this machine suitable for most of applications
  • Special technology control oil consumption, special design on piston and sleeves make this happen. Fuel/oil rate lower than 0.2%
  • Strength engine body design for more durability and lower noise

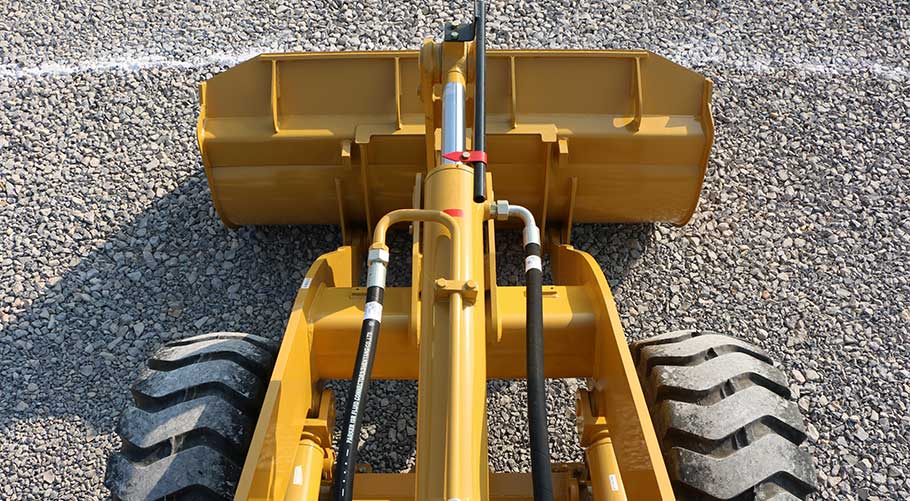

Efficient Hydraulic System

  • Full load-sensing steering hydraulic system bring lower fuel consumption and good operation feeling
  • Professional pump, valve and hose deliver higher reliability
  • Excellent line routing reduce abnormal leakage make hydraulic system more reliable
  • Quick movement with 7.8s cycle time deliver higher productivity

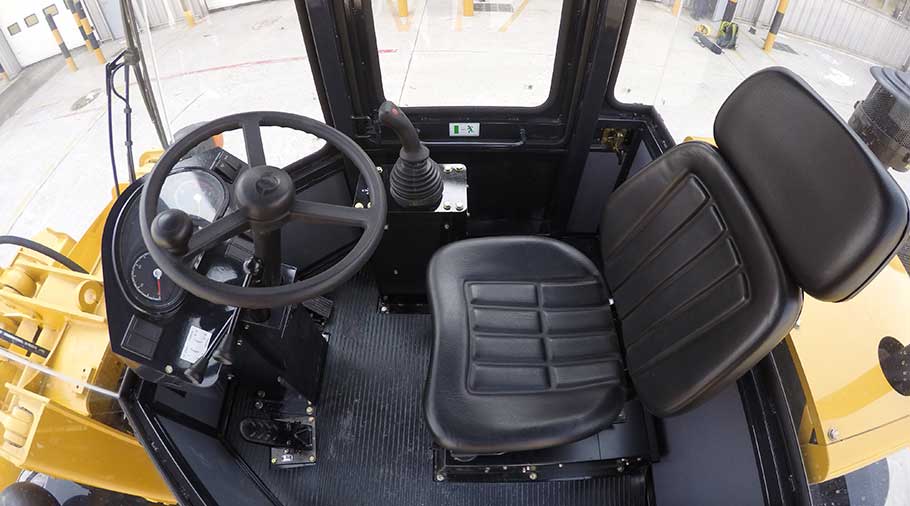

Operator Station

  • First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
  • AC optional for better temperature control inside cab

Drivetrain

  • Professional counter shaft transmission and axle make machine more reliable
  • One stage, 3 elements torque convert higher efficiency

Cooling System

  • High performance aluminum cooling package provides high reliability
  • Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
  • Damping design reduce vibration failure

Solid Structure

  • Validated by Cat technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
  • Middle articulation frame less work space requirement, reduce tire resistance and save fuel
  • Large spread hitch design in acticulation section can stand more load

Serviceability

  • Quick pressure test ports on HYD and brake lines make diagnose easier

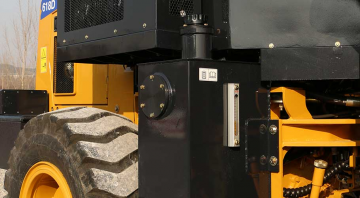

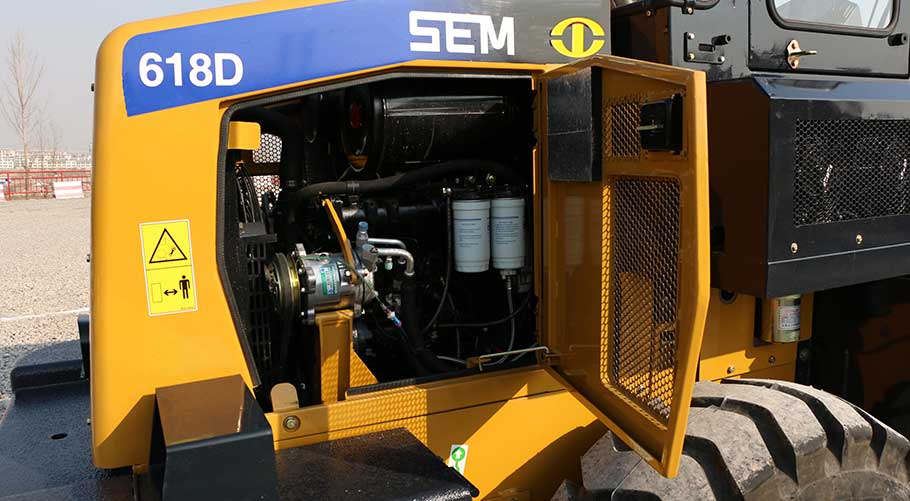

  • Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
  • Large spread hitch design in articulation section make operator easier to approach

Safety

  • High decibel Beacon and backup alarm make person around easy to attention

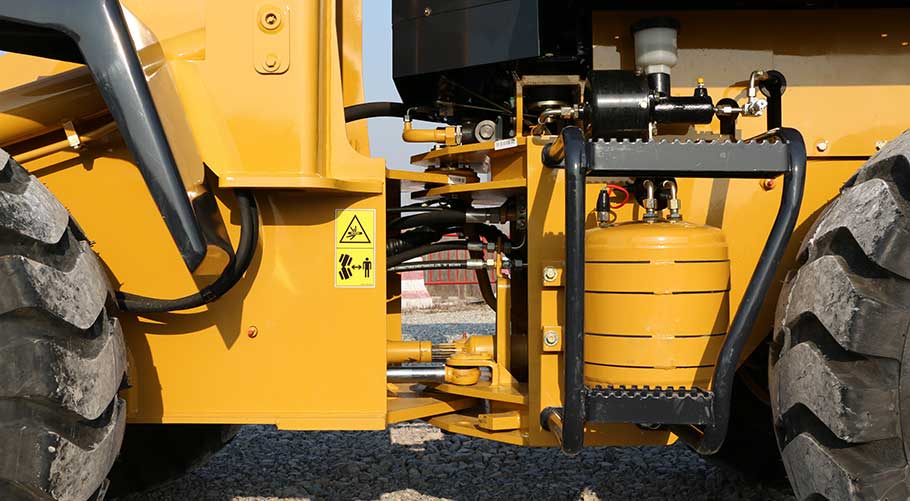

  • Two boosters design make brake effective

Machine Applications

  • Widely used in Municipal, livestock production and farms
  • Also in industrial, recycled material processing in countryside, cement making and etc.
  • Item
    Unit
    Params
  • Main Specifications
  • Rated Load
    kg
    1,800
  • Operating Weight with Standard Bucket
    kg
    5,940
  • Bucket Capacity
    m3
    0.9-1.0
  • Wheel Base
    mm
    2,200
  • Overall Dimension
    mm
    5,901*2,000*2,822
  • Max. Drawbar Force
    KN
    55
  • Breakout Force
    KN
    63
  • Dump Clearance
    mm
    2,691
  • Transmission
  • Transmission Type

    Countershaft, power shift
  • Transmission Gears

    F2/R2
  • Torque Converter Type

    Single stage, 3 elements
  • Maker & Type

    ZL15
  • Forward I/Reverse I

    9.8/9.6
  • Forward II/Reverse II

    24/23.6
  • Axle
  • Main Drive Type

    Spiral bevel gear, single stage
  • Final Drive Reduction Type

    Planetary type, single stage
  • Rear - Oscillating +/

    ±12
  • Engine
  • Model

    YT4B4-22
  • Rated Power
    kW
    60
  • Rated Speed
    r/min
    2,200
  • Displacement
    L
    4.76
  • Implement Hydraulic
  • Implement System Type

    Open center
  • Boom Raise Time
    s
    4.35
  • Hydraulic Cycle Time
    s
    7.8
  • System Pressure Setting
    Mpa
    17
  • Brake System
  • Service Brake

    Dry&caliper, air to oil control
  • Parking Brake

    Disk & Caliper
  • Steering System


  • System Type

    Shared flow
  • Steering Pump Type

    Gear pump
  • System Pressure Setting
    Mpa
    14
  • Steering Angle (L/R)

    35±1
  • Tires
  • Size

    16/70-20
  • Type

    PR
  • Layer

    14
  • Textured Type

    L-3
