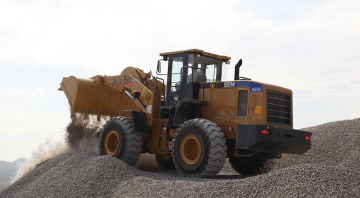

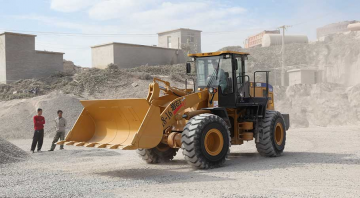

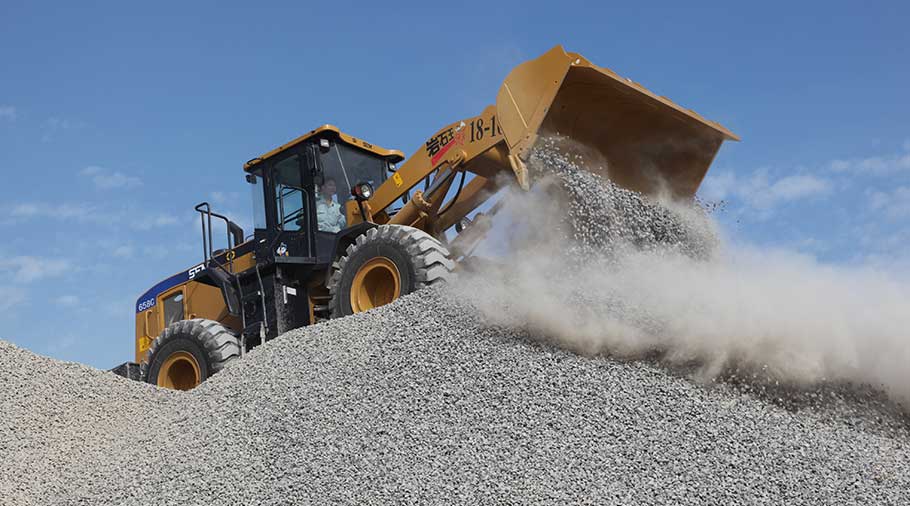

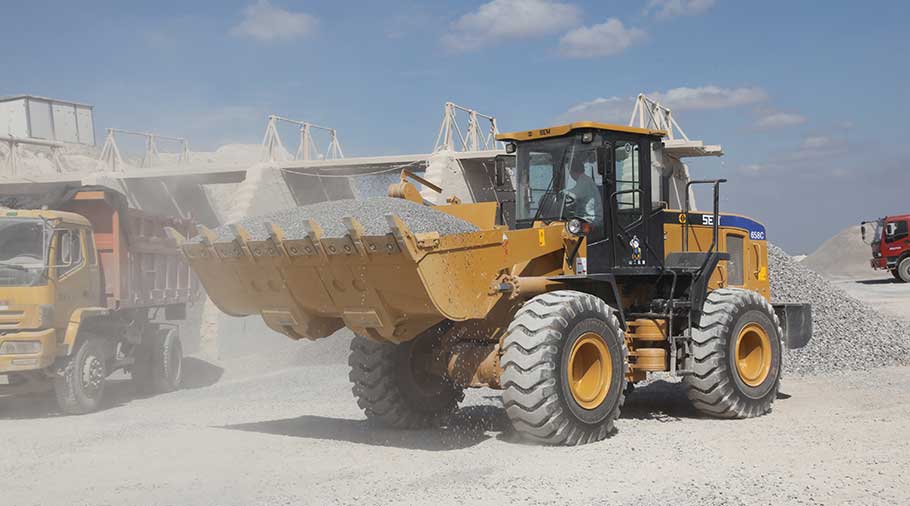

SEM658C

Your Current Location: Homepage> Products> Wheel Loader>SEM658C
SEM658C

SEM658C

Advantages

* Based on proven Caterpillar MWL countershaft transmission brings industry leading durability and reliability;

* Decades of wheel loader transmission design and manufacturing experience, world class components technology and sourcing;

* World class technology axle utilizes Caterpillar technology with high levels of reliability

* Optimized bucket with improved structure increases productivity and reduces operating cost

* Optimized implement valve with joystick pilot control hydraulic system improves lift and tilt forces

* Spacious, comfortable and luxurious cab;

* Comfortable suspended seat with fully adjustable backrest and armrest; Joystick implement hydraulic control

* Best-in-class electrical system, optimized wiring harness design and routing;

* Optimized using Finite Element Analysis (FEA) techniques refined for heavy duty applications

Inquiry
Specification Work Tools Photo
  • Item
    Unit
    Params
  • Main Specifications
  • Rated Load Capacity
    kg
    5,000
  • Operating Weight
    kg
    17,000
  • Bucket Capacities
    2.7-4.5
  • Max.Gradeability (°)
    °
    30
  • Overall Dimensions L*W*H*
    mm
    8176×3068×3440
  • Engine
  • Rated Gross Power

    162 kW/217hp
  • Model

    SDEC SC11CB 220
  • Bore
    mm
    120.65
  • Stroke
    mm
    152.4
  • Displacement
    L
    10.45
  • Peak Torque
    Nm
    912
  • Operating Specifications
  • Max. Rimpull
    kN
    155
  • Breakout Force
    kN
    168
  • Hydraulic System
  • Pump Displacement-Implement Pump
    ml/rev
    97
  • System Pressure Setting
    MPa
    19
  • Hydraulic Cycle Times :


  • Raise
    s
    5.5
  • Dump
    s
    0.9
  • Lower (Empty,Float Down)
    s
    3.8
  • Total
    s
    10.2
  • Steering
  • Steering Angle Left/Right
    °
    38°±1°
  • Minimum Turning Radius Over Rear Tire
    mm
    5867
  • Minimum Turning Radius Over Bucket
    mm
    6931
  • Axle
  • Brand

    SEM SI
  • Front

    Fixed with Wet Brake
  • Rear

    Trunnion Mounted Axle and Wet Brake
  • Maximum Single-Wheel Rise and Fall
    °
    Oscillating±12°
  • Brake System
  • Service Brake

    Inboard Wet Brake
  • Parking Brake

    Drum-Type Shoe Brake,Spring Applied & Air Released
  • Transmission SEM
  • Type
    Countershaft
    Power Shift
  • Travel Speed:
    |
    ||
  • Forward
    7.0 km/hr
    13.0 km/hr
  • Reverse
    7.0 km/hr
    13.0 km/hr
  • Travel Speed:
  • Forward
    22.3 km/hr
    35.1 km/hr
  • Reverse
    22.3 km/hr

  • Service Refill Capacities
  • Fule Tank
    L
    252
  • Cooling System
    L
    50
  • Engine Lubricating Oil
    L
    23
  • Oil for Converter and Gear Box
    L
    60
  • Differentials and Final Drives:


  • Front
    L
    40
  • Rear
    L
    35
  • Hydraulic Tank
    L
    230
  • Tires
  • Size

    23.5-25
  • Type

    Bias
  • Layers

    16
  • Textured Type

    L3/E3
  • Air Pressure

    Front 400 kPa/Rear 350 kPa
